Asus Rog Strix 1000G 1000W 80+ Gold Fully Modular Power Supply

Asus Rog Strix 1000G 1000W 80+ Gold Fully Modular Power Supply

The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. In terms of cooling, massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTX™ graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.

The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside Strix PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.

Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

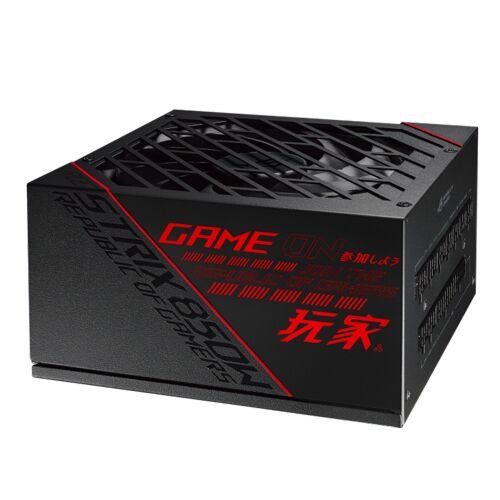

Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.

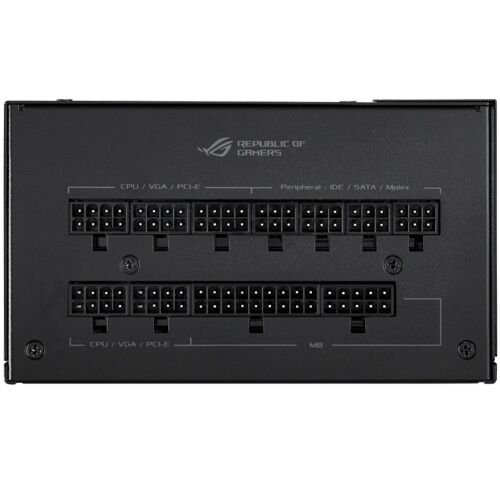

Keep your rig neat and tidy with fully modular cables. One 24-pin, two 6+2-pin PCI-e, and two 8-pin CPU cables come with embedded capacitors that reduce voltage ripple, and the included CableMod coupon will set you on your way towards next-level customization.

Better, faster, stronger

Originally the result of R&D efforts for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. The enhanced efficiency allows the fan to keep things cool at low RPMs, resulting in less overall system noise and increased component lifespan.

2x longer lifespan

Different bearing types have unique pros and cons. In a PSU, durability is paramount, so we built a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Specifications
Intel Specification

ATX12V
Dimensions

16 x 15 x 8.6 Centimeter
Efficiency

80Plus Gold
Protection Features

OPP/OVP/SCP/OCP/OTP
Hazardous Materials

ROHS
AC Input Range

100-240Vac
Thermal Features

ROG Thermal Solution
DC Output Voltage

+3.3V +5V +12V -12V +5Vsb
Maximum Load

25A 25A 83A 0.3A 3A
Total Output

1000W
Connectors

MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 6 SATA x 8 PERIPHERAL x 6
Package Contents

Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable 1000mm x 2 (1000mm) PCI-E Cable x 3 (675mm) SATA Cable x 2 (810mm/860mm) Peripheral x 2 (450mm) ROG badge x 2 ROG logo magnet x 1 ROG label x 3 *MB/ CPU/ PCI-E cables come with embedded capacitors in the middle.
