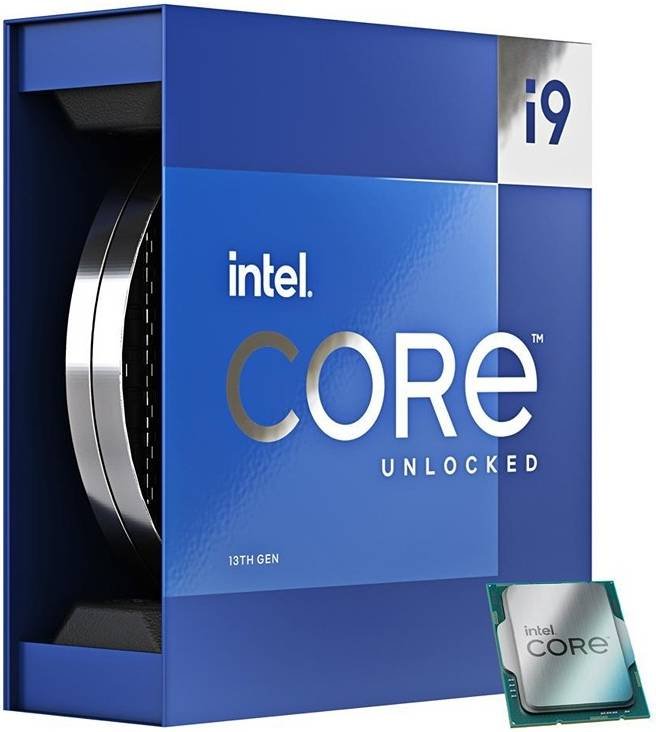

Intel Core i9-13900K Core i9 13th Gen Raptor Lake 24-Core 3.0 GHz E-core Base Frequency: 2.2 GHz LGA 1700 125W Desktop Processor - BX8071513900K

Intel Core i9-13900K Core i9 13th Gen Raptor Lake 24-Core 3.0 GHz E-core Base Frequency: 2.2 GHz LGA 1700 125W Desktop Processor - BX8071513900K
13th Gen Intel Core i9-13900K desktop processor. Featuring Intel Adaptive Boost Technology, Intel Thermal Velocity Boost, Intel Turbo Boost Max Technology 3.0, and PCIe 5.0 & 4.0 support, DDR5 and DDR4 support, unlocked 13th Gen Intel Core i9 desktop processors are optimized for enthusiast gamers and serious creators and help deliver high performance. Compatible with Intel 700 Series and Intel 600 Series Chipset based motherboards. 125W Processor Base Power.
Chipset Compatibility: Find compatible motherboards by accessing the Intel® Product Compatibility Tool, click Desktop and Workstation Processors , and choose the processor to find available compatible motherboards and other related information.
About this item
Stream, create, and compete at the highest levels with industry leading features and the latest hybrid architecture
24 cores (8 P-cores + 16 E-cores) and 32 threads
Up to 5.8 GHz unlocked. 36MB Cache
Integrated Intel UHD Graphics 770 included
Compatible with Intel 600 series (might need BIOS update) and 700 series chipset-based motherboards
Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
CPU Specifications
Total Cores 24
# of Performance-cores8
# of Efficient-cores16
Total Threads 32
Max Turbo Frequency 5.80 GHz
Intel® Thermal Velocity Boost Frequency 5.80 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.70 GHz
Performance-core Max Turbo Frequency 5.40 GHz
Efficient-core Max Turbo Frequency 4.30 GHz
Performance-core Base Frequency3.00 GHz
Efficient-core Base Frequency2.20 GHz
Cache 36 MB Intel® Smart Cache
Total L2 Cache32 MB
Processor Base Power 125 W
Maximum Turbo Power 253 W
Supplemental Information
Marketing StatusLaunched
Launch Date Q4'22
Embedded Options Available No
DatasheetView now
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
ECC Memory Supported ‡ Yes
Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics 770
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.65 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3.0
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡4
Device ID0xA780
Expansion Options
Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration1
TJUNCTION 100°C
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Speed Shift Technology Yes
Intel® Adaptive Boost TechnologyYes
Intel® Thermal Velocity Boost Yes
Intel® Turbo Boost Max Technology 3.0 ‡ Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Flex Memory Access Yes
Intel® Volume Management Device (VMD) Yes
